Provisional Dimensions (mm) | ||
---|---|---|
Wheelbase | WB | 3365 |
Overall Length | OAL | 5780 |
Overhang - Front | FOH | 1110 |
C/L Front Axle to Rear of Cab | CA | 550 |
Chassis Frame Width | 850 | |
Cab Width | OW | 2040 |
Overall Height (Unladen) | OH | 2265 |
Chassis Height (Unladen) | EH | 830 |
Minimum Road Clearance | HH | 190 |
Track - Front | AW | 1680 |
Track - Rear | CW | 1650 |
Rear Axle Width | BW | 2129 |
Overall Vehicle Width | OVW | 2780 |
Provisional Weights (kg) | ||
---|---|---|
Wheelbase | WB | 3365 |
Cab type | Day | |
Vehicle Mass Unladen | Front | 2002 |
Rear | 1795 | |
Total | 3797 | |
GVW | 7500 | |
Max. Permissible Trailer Weight | 3500 | |
Payload Allowance (Body & Payload for Chassis Cab) | 3703 |
FEATURES | |||

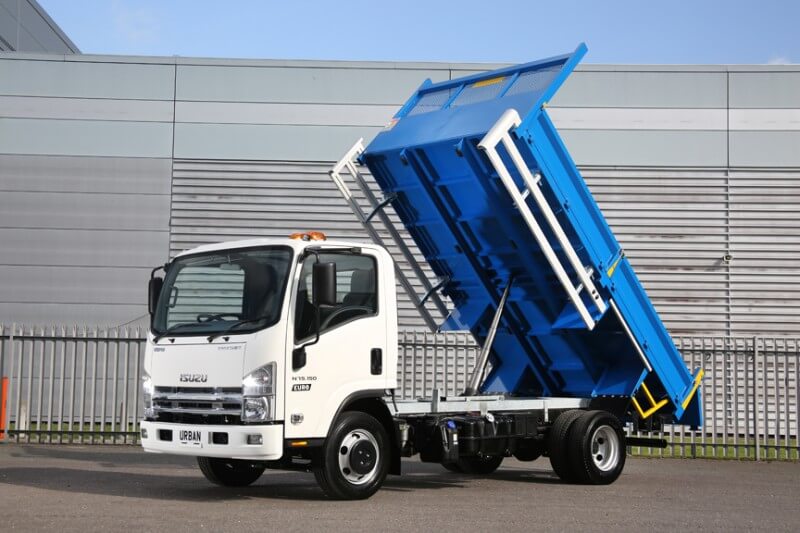

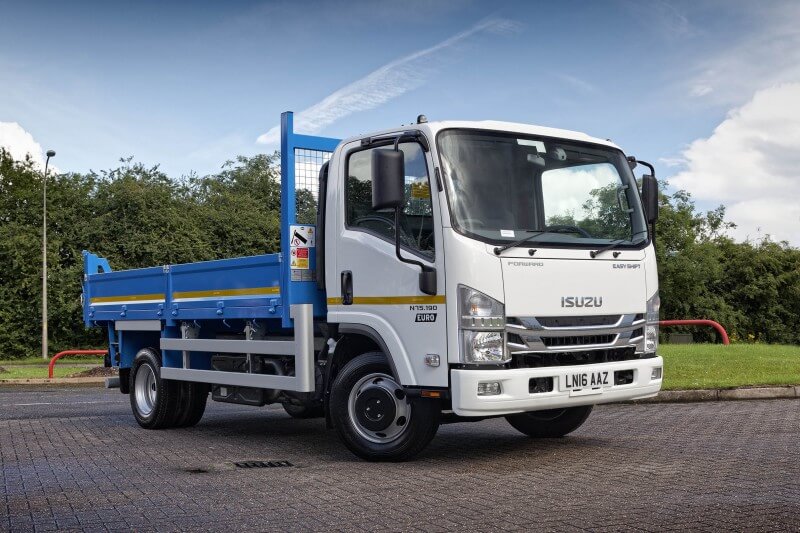

Body | Steel underfloor tipping body | Wings | 2.5mm thick pressed steel. Extended to form steps nearside and offside |
Style | Double drop side | Rope hooks | To be fitted on all bearers. |
Floor | Two piece 3mm thick pressed steel floor incorporating side raves | Side guards | Type approved aluminium hinged side guards. |
Ladder Gantry | Heavy duty ladder gantry | Warning | In cab warning light and buzzer to be fitted to warn the operator when the body is in the raised position. |
Infill | 2mm thick turret punched steel sheet. | Tipping Gear | CVH underfloor tipping gear, complete with vacuum operated PTO. Controls in the cab. |
Side-boards | Pressed steel with 1.6mm steel infill panels. | Finish | All steelwork to be prepared and painted in a single colour 2 pack finish |
Tailgate | Constructed as side specification, top and bottom hung securing pins bolted on for easy replacement. Tailgate fitted with heavy duty centre stiffener and tailgate wedge. | Transfers | Bodywork to be fitted with H&S signage |
Body Prop | One man operated steep body prop | Towbar | Type approved towbar assembly fitted as part of the under run bar. 50mm ball and pin coupling. Seven pin electrics. Rear light stalks. Rear light guards. |
CAB FEATURES | |||
CAB EXTERIOR | CAB INTERIOR | ||
Type | Hexapod, white all-steel with roof outline markers and roof beacon. | Features | Flame-resistant interior trim. Vinyl floor matting. Pillar mounted entrance grab handles both sides. Driver & passenger SRS airbags. |
Features | Manual tilt to 45 deg. Tinted windscreen. Chrome radiator grille. Plastic resin non-slip entry steps. 90 deg. opening doors. Zinc galvanised frame structure. Steel reinforced composite front bumper with fog and daytime running lamps. Two halogen head lamps with indicators. Front mudguards with spray suppression. Aluminium rear under run bar protection. (R58.03) | Seats: Features: | Driver’s fully adjustable suspension seat with head restraint. Dual split passenger seat, folding back centre with tray. Driver and outer passenger retractable diagonal seat belts with pretensioner. Centre seat lap belt. Upholstery shade upgrade. |
Vision: Features: | Large foldable, heated mirrors. Interior rear view mirror on collapsible mounting. Driver and passenger sun visors. Deep cut side windows to reduce blind spots. Electric windows with driver control and lock. |
WARRANTY |
All chassis cabs come with three-year unlimited mileage warranty and roadside assistance as standard. Terms and conditions apply. Tipper bodies come with a three-year unlimited mileage warranty on bodywork components, twelve-months unlimited mileage warranty on all paintwork, from the date of the vehicle’s first registration. Terms and conditions apply. |
Isuzu backed Repair and maintenance contracts available upon request |
SAFETY & SECURITY | |
R29 cab strength: | Complies with ECE-R29 cab strength standard |
Central locking: | Central locking with remote keyless entry and immobiliser |
Lane departure warning system: | Stereo camera monitor, alerts driver with a warning buzzer and LCD monitor. |
Advanced Emergency Braking System (AEBS): | Utilised stereo camera system to reduce collision damage |
