| Provisional Dimensions (mm) | ||
|---|---|---|
| Wheelbase | WB | 4475 |
| Overall Length | OAL | 8340 |
| Overhang - Front | FOH | 1110 |
| C/L Front Axle to Rear of Cab | CA | 550 |
| Chassis Frame Width | 850 | |
| Cab Width | OW | 2040 |
| Overall Height (Unladen) | OH | 2265 |
| Chassis Height (Unladen) | EH | 840 |
| Minimum Road Clearance | HH | 190 |
| Track - Front | AW | 1680 |
| Track - Rear | CW | 1650 |
| Rear Axle Width | BW | 2115 |
| Overall Vehicle Width | OVW | 2400 |
| Provisional Weights (kg) | ||
|---|---|---|
| Wheelbase | WB | 4475 |
| Cab type | Day | |
| Vehicle Mass Unladen | Front | 1715 |
| Rear | 1540 | |
| Total | 3255 | |
| GVW | 7500 | |
| Max. Permissible Trailer Weight | 3500 | |
| Payload Allowance (Body & Payload for Chassis Cab) | 4245 | |
| FEATURES | |||

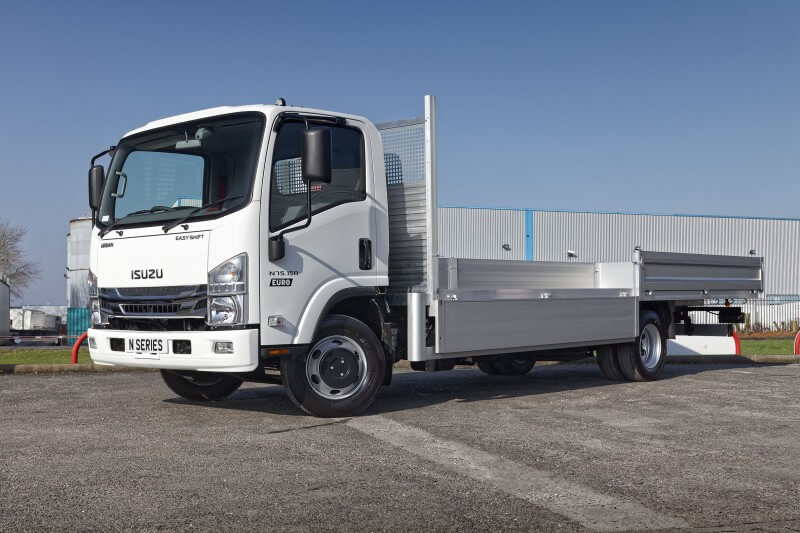

| Body | Aluminium dropside body | Corner posts | Aluminium removable corner posts |
| Style | Double drop sides | Sideboards | 400mm high x 1.8mm thick double skinned aluminium planked sideboards, secured by anti-luce fasteners. |
| Floor | 18mm Wisa deck flooring | Tailboard | Constructed as per sides, bottom hung. |
| Chock rails | Aluminium ‘V’ grooved chock rails | Rope hooks | To be fitted on all bearers. |
| Ladder Gantry | 75mm x 50mm x 6mm aluminium angle | Load Restraint | 4 pairs of ‘T’ bars |
| Infill | Turret punched infill sheet | Side guards | Type approved side impact protection. |
| Headboard | 200mm aluminium corrugated headboard planks | Finish | Body in plain aluminium finish |
| CAB FEATURES | |||
| CAB EXTERIOR | CAB INTERIOR | ||
| Type | Hexapod, white all-steel with roof outline markers. | Features | Flame-resistant interior trim. Vinyl floor matting. Pillar mounted entrance grab handles both sides. Driver & passenger SRS airbags. |
| Features | Manual tilt to 45 deg. Tinted windscreen. Chrome radiator grille. Plastic resin non-slip entry steps. 90 deg. opening doors. Zinc galvanised frame structure. Steel reinforced composite front bumper with fog and daytime running lamps. Two halogen head lamps with indicators. Front mudguards with spray suppression. Aluminium rear under run bar protection. | Seats: Features: | Driver’s fully adjustable suspension seat with head restraint. Dual split passenger seat, folding back centre with tray. Driver and outer passenger retractable diagonal seat belts with pretensioner. Centre seat lap belt. Upholstery shade upgrade. |
| Vision: Features: | Large foldable, heated mirrors. Interior rearview mirror on collapsible mounting. Driver and passenger sun visors. Deep cut side windows to reduce blind spots. Electric windows with driver control and lock. | ||
| WARRANTY |
| All chassis cabs come with three-year unlimited mileage warranty and roadside assistance as standard. Terms and conditions apply. Dropside bodies come with a three-year unlimited mileage warranty on bodywork components, twelve-months unlimited mileage warranty on all paintwork, from the date of the vehicle’s first registration. Terms and conditions apply. |
| Isuzu backed Repair and maintenance contracts available upon request |
| SAFETY & SECURITY | |
| R29 cab strength: | Complies with ECE-R29 cab strength standard |
| Central locking: | Central locking with remote keyless entry and immobiliser |
| Lane departure warning system: | Stereo camera monitor, alerts driver with a warning buzzer and LCD monitor. |
| Advanced Emergency Braking System (AEBS): | Utilised stereo camera system to reduce collision damage |
