| WEIGHTS (KG) PROVISIONAL | ||
| Cab type | day | |
| Wheelbase | WB | 2750 |
| Vehicle Mass Unladen | Front | 1608 |
| Rear | 910 | |
| Total | 2518 | |
| GVW | 3500 | |
| Payload allowance | 982 | |
| Max. Permissible Trailer Weight | 3500 | |
| DIMENSIONS (MM) | |||
| Overall length | OAL | 5150 | |
| Body Length | External body length | 3290 | |
| Internal body length | 3190 | ||
| Body width | OVW | External body width | 1950 |
| Internal body width | 1850 | ||
| FEATURES | |

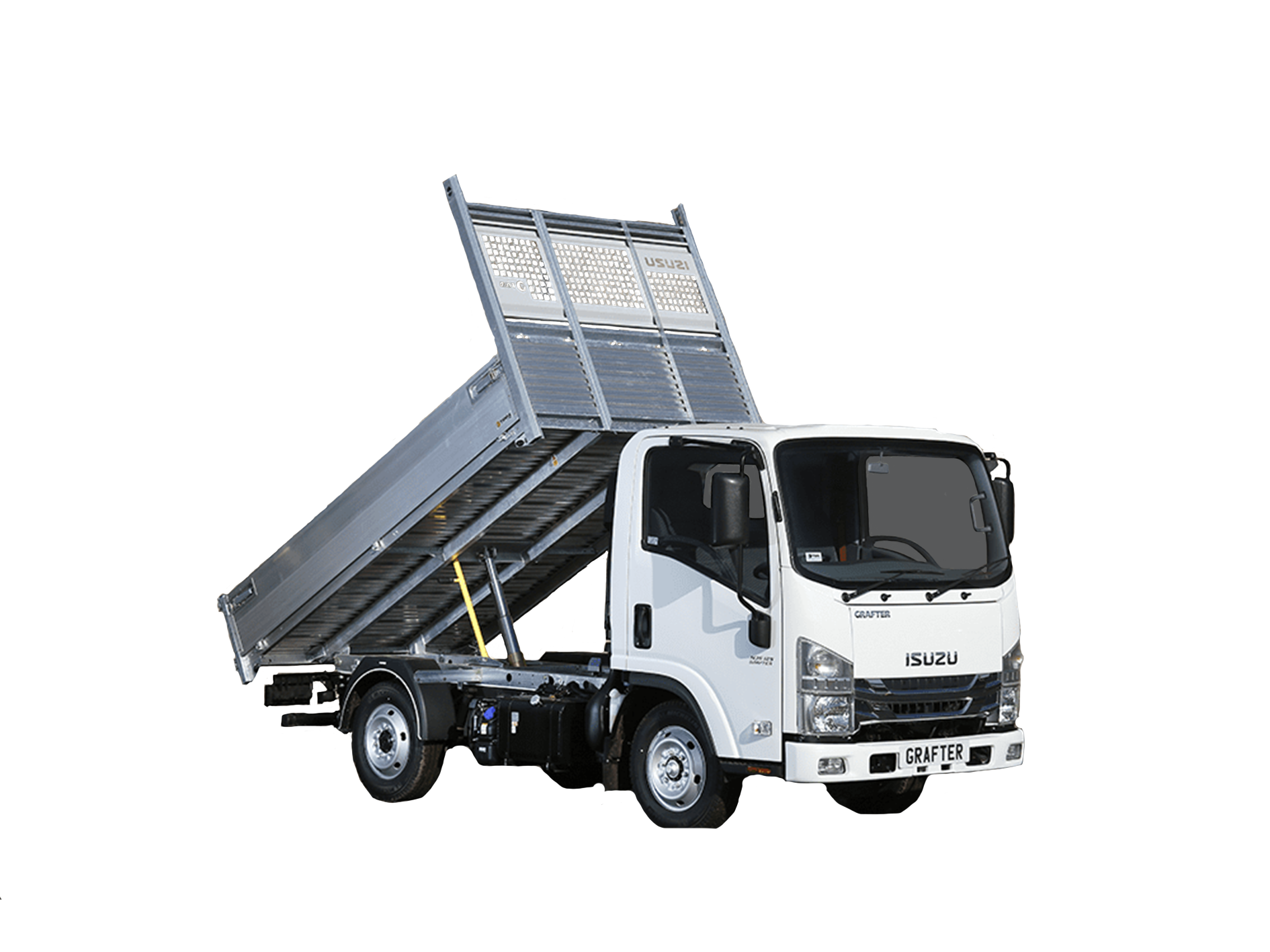

| Fully galvanised steel sub frames | Fully galvanised steel tipping gear |
| Multistage direct lift under floor ram | Wander lead control complete with thermoplastic oil reservoir – mounted inboard |
| Hose burst safety valve | Rubber mounted body rests |
| Fully galvanised gantry with ‘Isuzu’ pressed infill panel | 18mm alloy ‘Tippadeck’ heavy duty interlocking floor system |

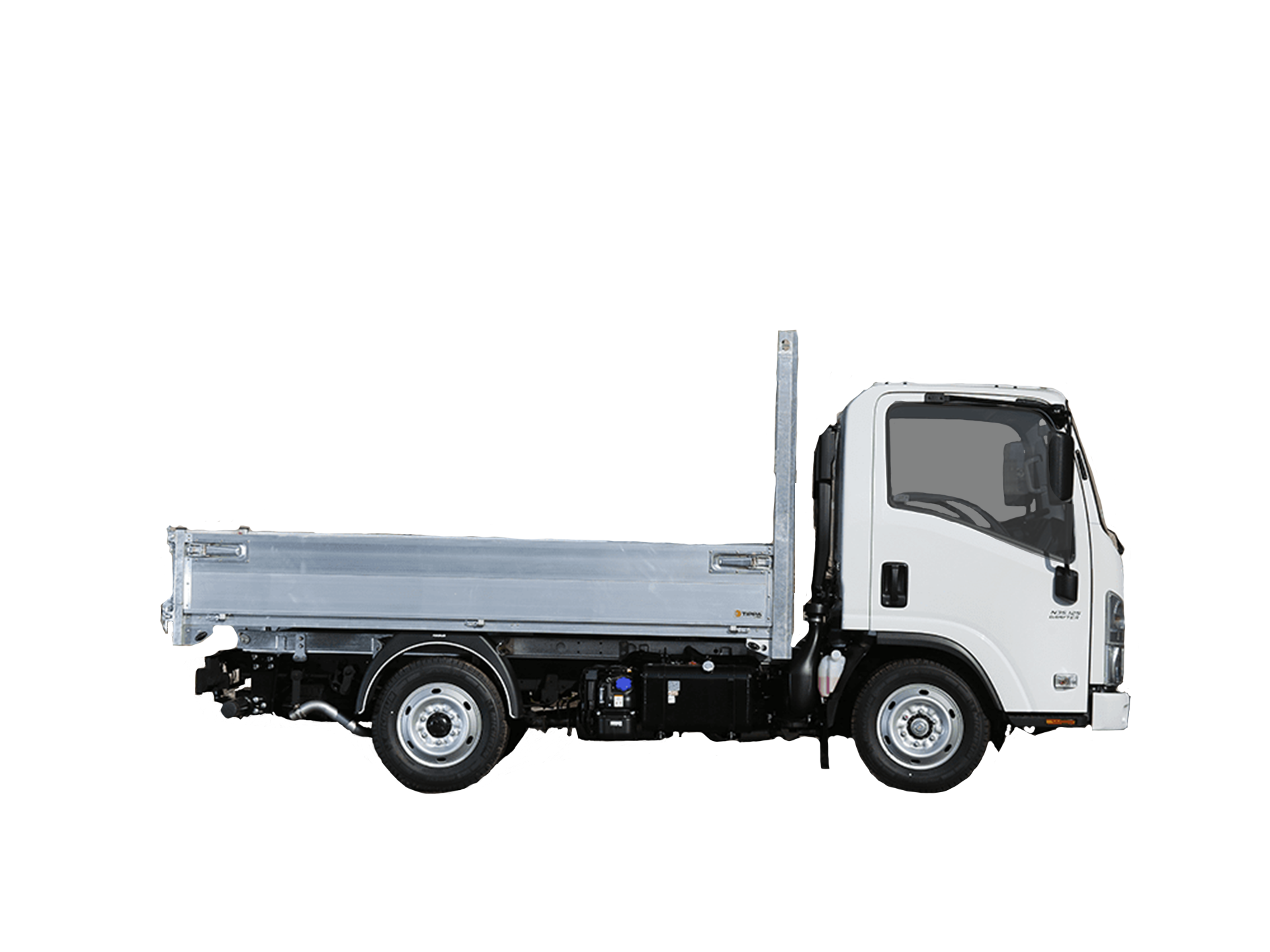

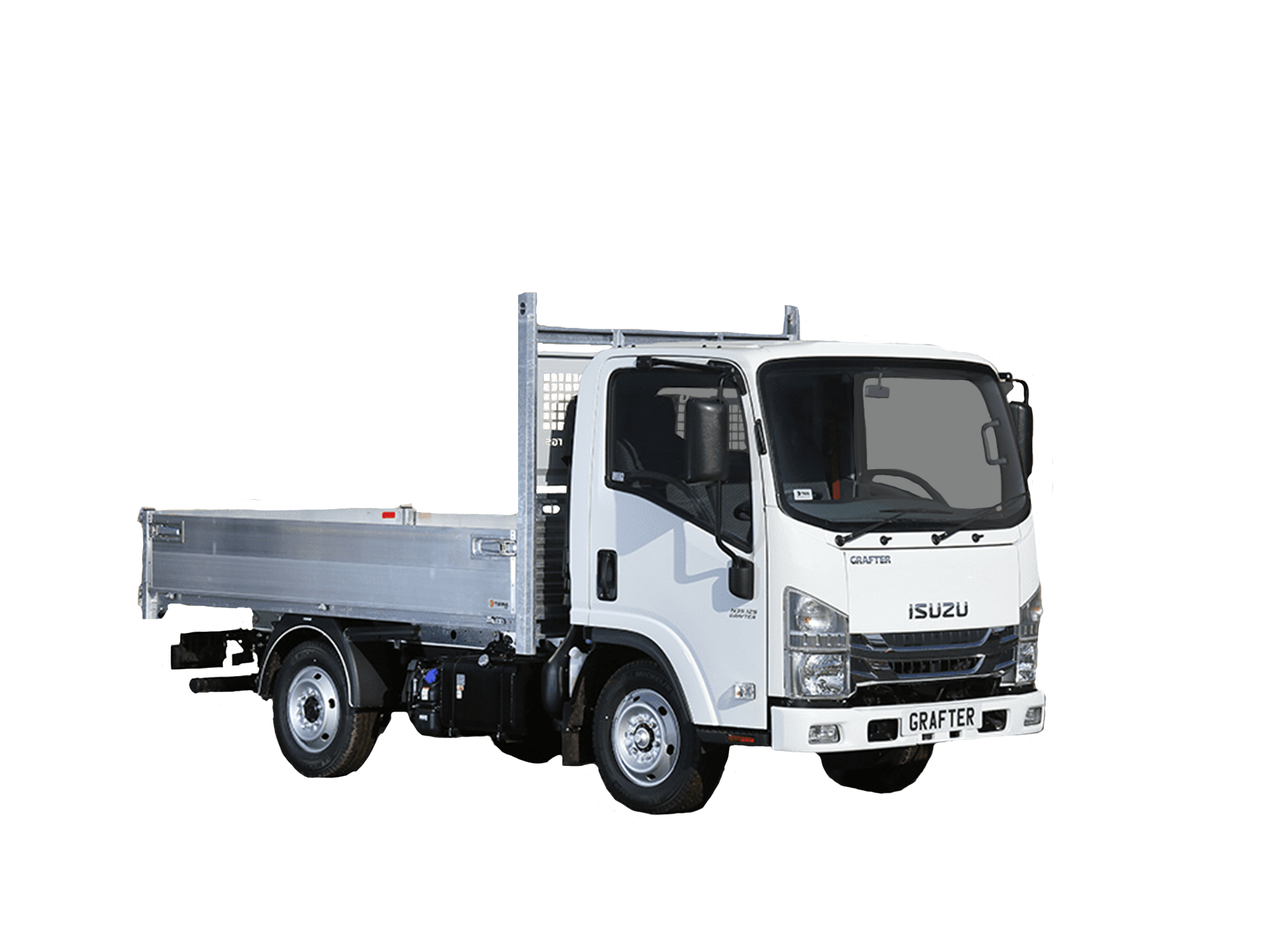

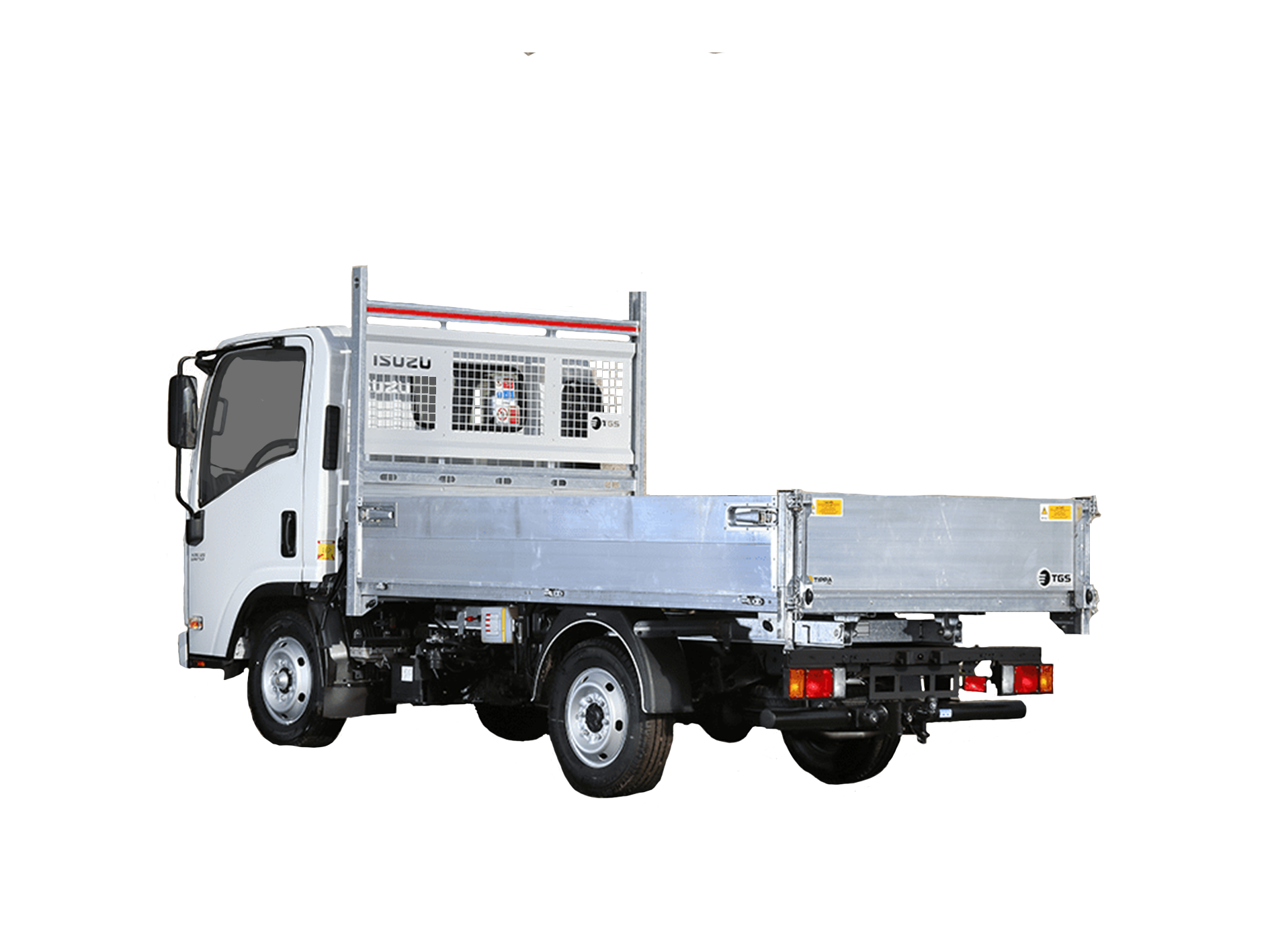

| Single 400mm high alloy mill finish dropside boards c/w recessed spring catches | 400mm alloy mill finish tailboard with 2-way hinge assembly and rubber stops |
| Fully galvanised corner posts | Heavy duty under floor tie points either side |
| Half round thermoplastic mud wings | Integral body prop |
| Safety decals and colour instruction manual | |
| CAB EXTERIOR | CAB INTERIOR | ||
| Type | Hexapod, white, all-steel | Features | Flame-resistant interior trim. Vinyl floor matting. Pillar mounted entrance grab handles both sides. Driver and passenger SRS airbags. |
| Features | Manual tilt to 45 deg. Tinted windscreen. Chrome radiator grille. Plastic resin non-slip entry steps. 90 deg. opening doors. Zinc galvanised frame structure. Steel-reinforced composite front bumper with fog and daytime running lamps. Two halogen head lamps with indicators. Front mudguards with spray suppression. Keyless door entry and immobiliser. | Seats: Features: | Driver’s fully adjustable suspension seat with head restraint. Dual passenger seat with folding back. Driver and outer passenger retractable diagonal seat belts with pretensioner. Upholstery shade upgrade. |
| Vision: Features: | Large foldable mirrors. Interior rear view mirror on collapsible mounting. Driver and passenger sun visors. Deep cut side windows to reduce blind spots. Electric windows with driver control and lock. | ||
| WARRANTY |
| All chassis cabs come with three-year unlimited mileage warranty and roadside assistance as standard. Tipper bodies come with the bodybuilder’s three-year, 100,00 mile warranty. Terms and conditions apply. |
| Isuzu backed Repair and maintenance contracts available upon request |
