HomeIsuzu Trucks N35.125 (T) Grafter
£POA

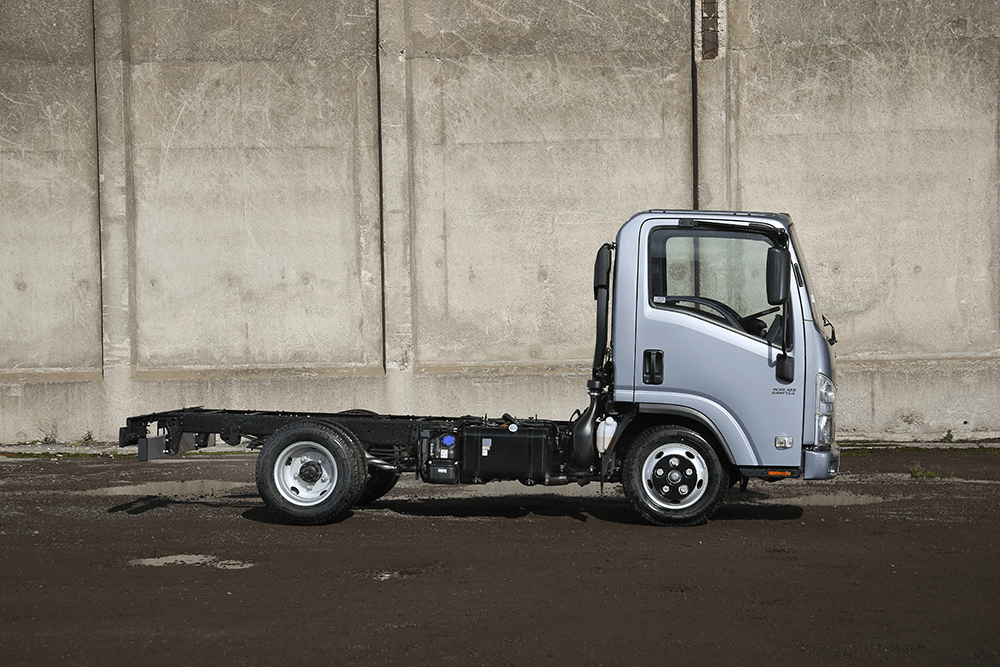

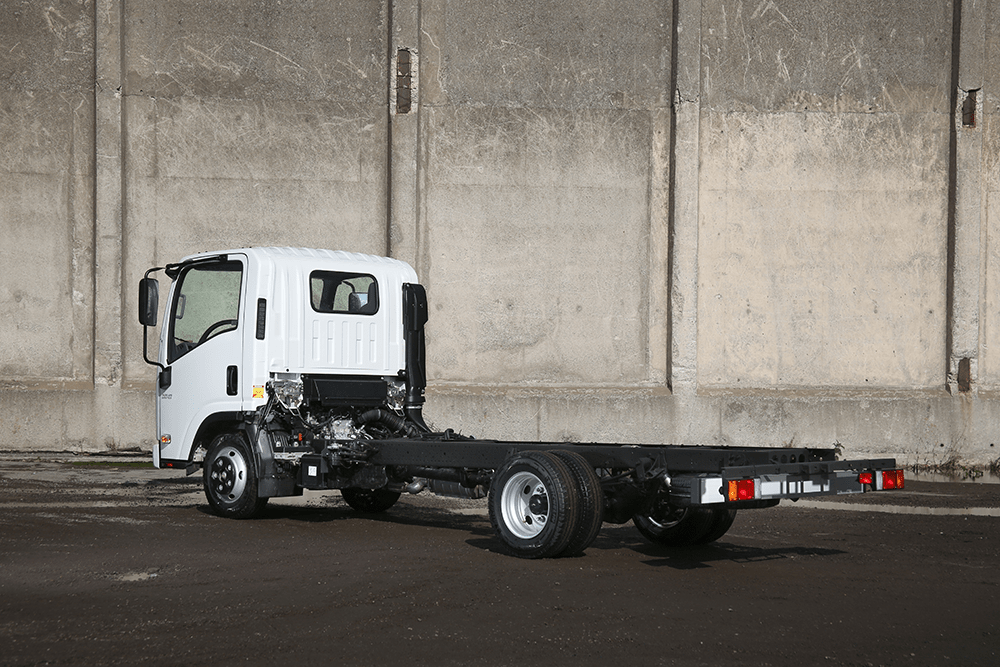

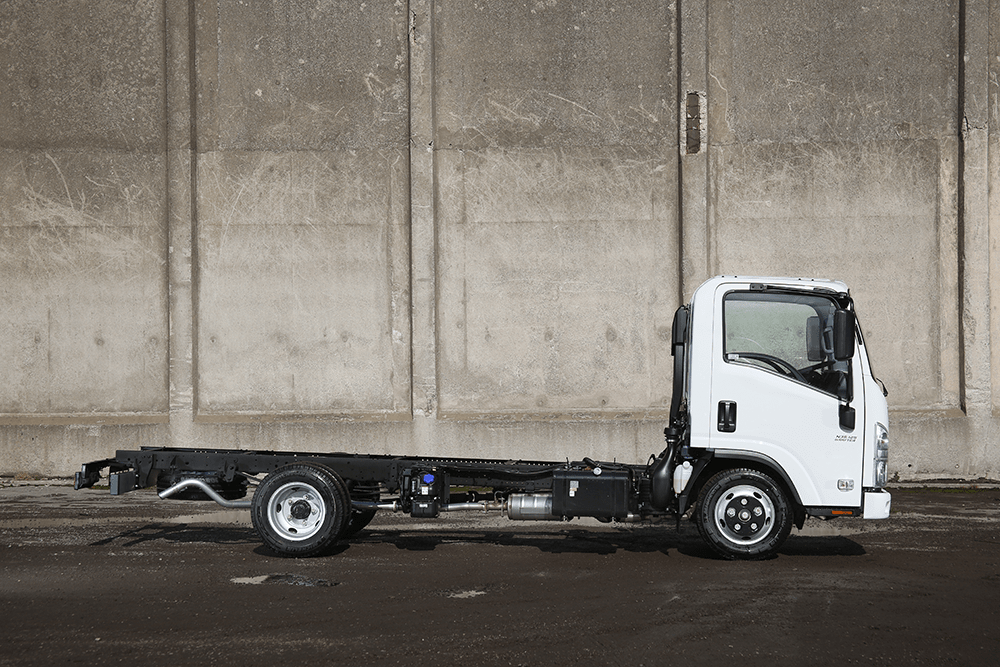

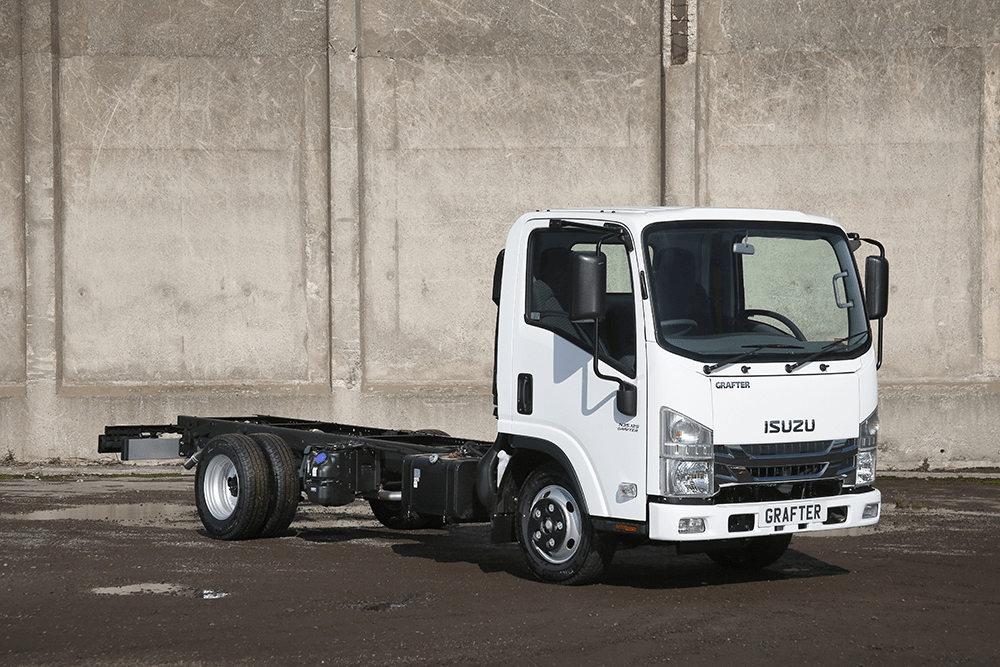

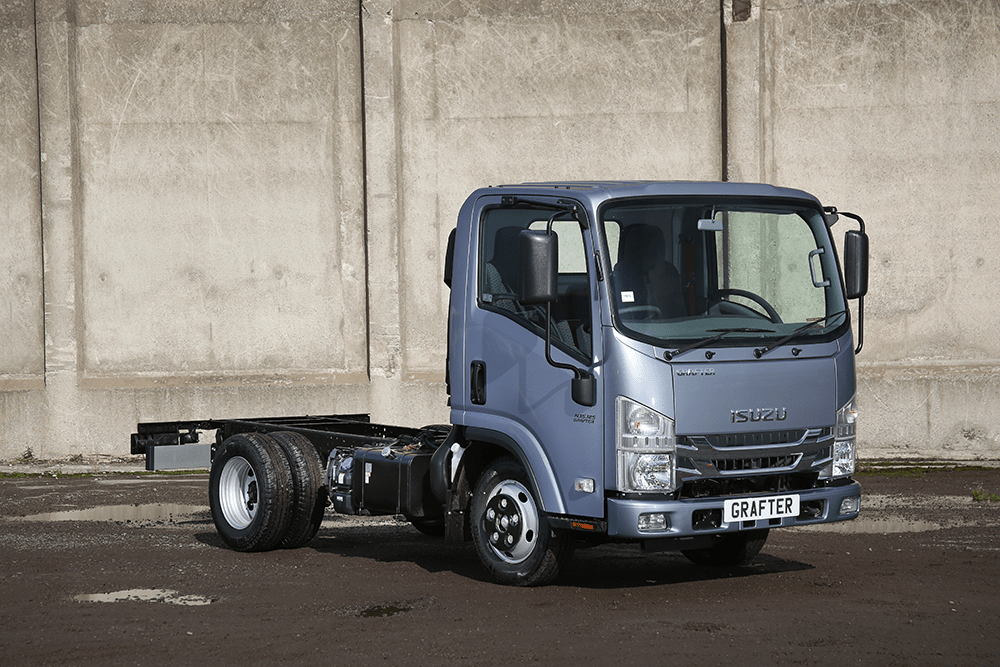

Isuzu Trucks N35.125 (T) Grafter Chassis Cab

One tough little truck!

  • Axle Configuration: 4x2
  • Profile: Rigid chassis cab with twin rear wheels.
  • Gross Vehicle Weight: 3.5T
  • Max Trailer Weight: 3.5T
  • Transmission: Isuzu 6 speed manual synchromesh MVC6W overdrive
  • Engine: RZ4E - Isuzu turbo intercooled DOHC 4 cylinder diesel. Lean NOx trap. DPD & SCR.
  • Capacity: 1898cc/120PS/88kW (at 3200rpm)

Perfect for...

  • Builders
  • Roadworks
  • Grounds Maintenance
  • Heavy Material carrying

Backed up by a trusted dealer...

We've been in the business a long time! Not only do we sell vehicles, we'll help you keep them on the road too. We are a one-stop shop for all vehicle needs as we can offer great R&M packages, parts, vehicle testing and tachograph calibrations too! Why not give our Aftersales services a visit?
Enquire about this vehicle
Request a callback
Share via:
Overview
Summary
Vehicle Condition New
Vehicle Age Unregistered
Vehicle BHP 120
Vehicle Axel Configuration 19
Vehicle Category Rigid Trucks
Vehicle Colour White
Vehicle Cab Type Day Cab
Vehicle Fuel Type Diesel
Vehicle Driver Position Right Hand Drive
Vehicle Gross Weight 3500
Vehicle Seats 2
Vehicle Transmission Manual
Vehicle Body Type Chassis
Vehicle Interior Condition New
Vehicle Body Condition New
Vehicle Tyre Condition New
Provisional Dimensions (mm)
Wheelbase WB 2500 3360
Overall Length OAL 4710 6015
Overhang - Front FOH 1100 1100
Overhang - Rear ROH 1110 1555
Cab Gap CB 130 130
C/L Front Axle to Rear of Cab CA 463 463
Recommended Body Length BL 3200 4500
Chassis Frame Width 700 700
Recommended Body Width 1945 1945
Recommended Max Body Width 2275** 2275**
Cab Width OW 1770 1770
Overall Height (Unladen) OH 2145 2145
Chassis Height (Unladen) EH 730 730
Minimum Road Clearance HH 195 195
Track - Front AW 1395 1395
Track - Rear CW 1395 1395
Rear Axle Width BW 1645 1645

Provisional Weights (kg)
Wheelbase WB 2500 3360
Cab type Day Day
Vehicle Mass Unladen Front 1295 1310
Rear 470 505
Total 1765 1815
GVW 3500 3500
Max. Permissible Trailer Weight 2500 2500
Payload Allowance (Body & Payload for Chassis Cab) 1735 1685
CAB FEATURES
CAB EXTERIOR CAB INTERIOR
Type Hexapod, white all-steel Features Flame-resistant interior trim. Vinyl floor matting. Pillar mounted entrance grab handles both sides. Driver and passenger SRS airbags.
Features Manual tilt to 45 deg. Tinted windscreen. Chrome radiator grille. Plastic resin non-slip entry steps. 90 deg. opening doors. Zinc galvanised frame structure. Steel reinforced composite front bumper with fog and daytime running lamps. Two halogen head lamps with indicators. Front mudguards with spray suppression. Keyless door entry and immobiliser. Rear under run bar protection. (R58.03) Seats: Features: Driver’s full adjustable suspension seat with head restraint. Dual passenger seat with folding back. Driver and outer passenger retractable diagonal seatbelts with pretensioner. Centre seat lap belt. Upholstery shade upgrade.
Vision: Features: Large foldable mirrors. Interior rear view mirror on collapsible mounting. Driver and passenger sun visors. Deep cut side windows to reduce blind spots. Electric windows with driver control and lock.

SAFETY & SECURITY
R29 cab strength: Complies with ECE-R29 cab strength standard
Central locking: Central locking with remote keyless entry and immobiliser
Lane departure warning system: Monocular camera monitor, alerts driver with a warning buzzer and LCD monitor
Advanced Emergency Braking System (AEBS): Milliwave Radar Type (View Assist Technology)

WARRANTY
All chassis cabs come with three-year unlimited mileage warranty and roadside assistance as standard. Terms and conditions apply.
Isuzu backed Repair and maintenance contracts available upon request
