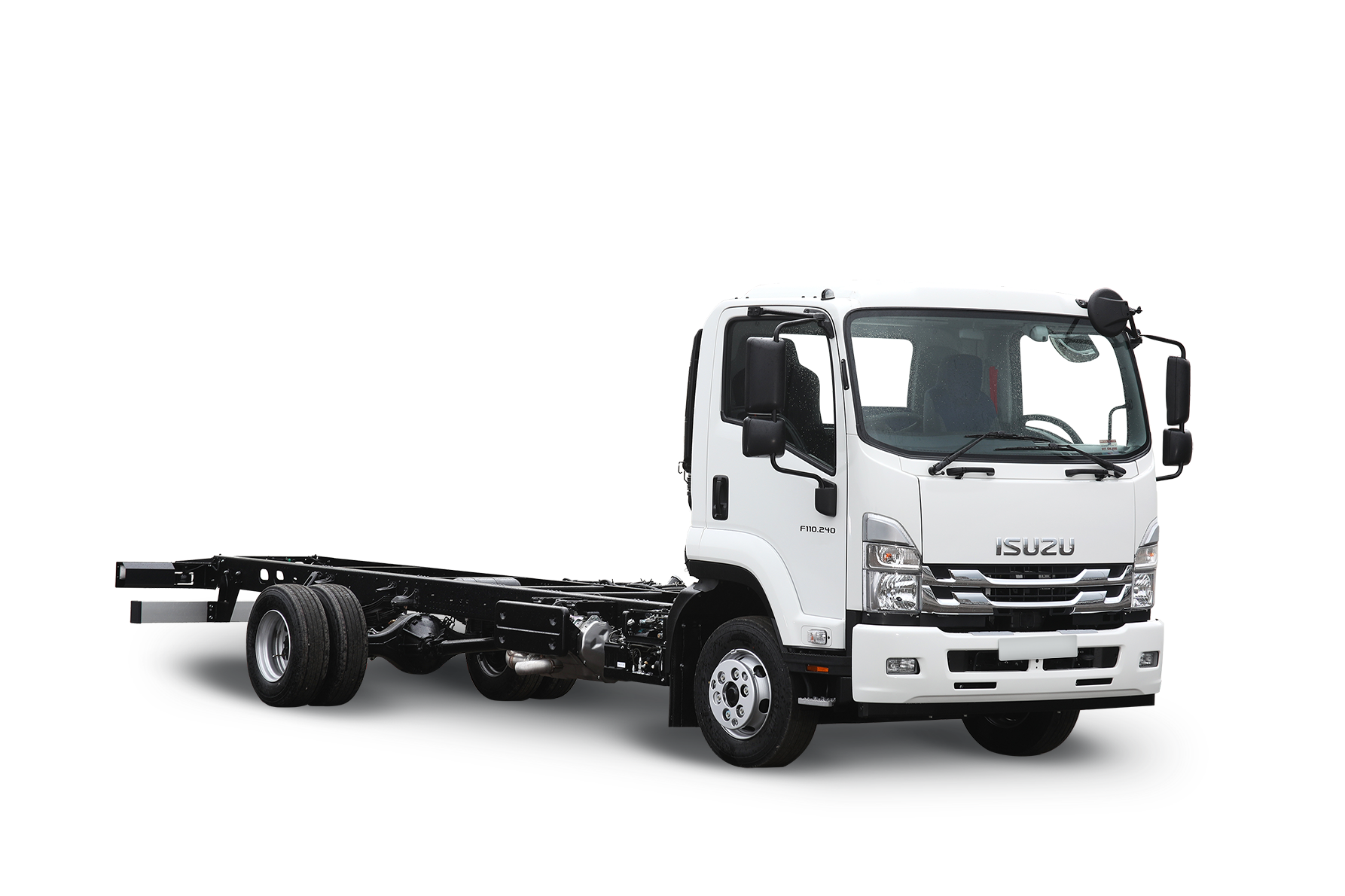

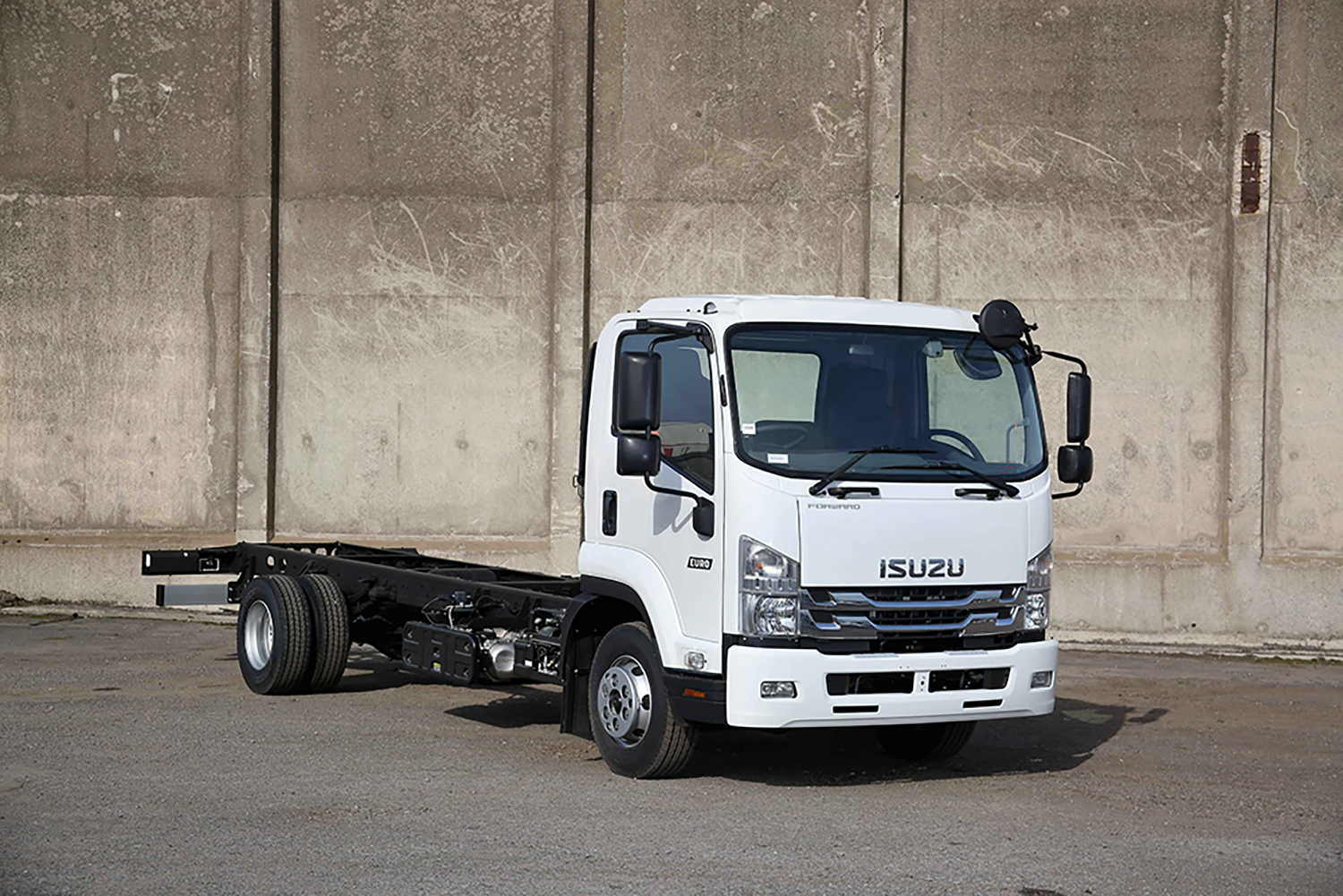

Isuzu Trucks F110.240 Chassis Cab

A tough and reliable all-rounder!

  • Axle Configuration: 4x2
  • Profile: Chassis Cab with twinrear wheels
  • Gross Vehicle Weight: 11T
  • Max Trailer Weight: 3.5T
  • Transmission: Isuzu 6-speed manual MZW6P gearbox.
  • Engine: 4HK1E6H-D – Isuzu turbo intercooled OHC 4 cylinder diesel with DPD & SCR.
  • Capacity: 5193cc/240PS/177kW at 2600rpm

Perfect for...

  • Building sites
  • Mobile Catering businesses
  • Gardeners
  • Grounds Maintenance
  • Transportation and deliveries
  • Municipal work
  • ...and more...
Enquire about this vehicle
Request a callback
Share via:
Vehicle Condition New
Vehicle Age Unregistered
Vehicle BHP 240
Vehicle Axel Configuration 19
Vehicle Category Rigid Trucks
Vehicle Colour White
Vehicle Cab Type Day Cab
Vehicle Fuel Type Diesel
Vehicle Driver Position Right Hand Drive
Vehicle Gross Weight 11000
Vehicle Seats 2
Vehicle Transmission Manual
Vehicle Interior Condition New
Vehicle Body Condition New
Vehicle Tyre Condition New
Provisional Dimensions (mm)
Wheelbase WB 3410
Overall Length OAL 6010
Overhang - Front FOH 1170
Overhang - Rear ROH 1430
Cab Gap CB 150
C/L Front Axle to Rear of Cab CA 556
Recommended Body Length BL 4500
Chassis Frame Width 840
Recommended Body Width 2550
Recommended Max Body Width 2550
Cab Width OW 2195
Overall Height (Unladen) OH 2510
Chassis Height (Unladen) EH 895
Minimum Road Clearance HH 185
Track - Front AW 1795
Track - Rear CW 1660
Rear Axle Width BW 2220
Provisional Weights (kg)
Wheelbase WB 3410
Cab type Day
Vehicle Mass Unladen Front 2390
Rear 1190
Total 3580
GVW 11000
Max. Permissible Trailer Weight 3500
Payload Allowance (Body & Payload for Chassis Cab) 7420
R29 cab strength: Complies with ECE-R29 cab strength standard
Central locking: Central locking with remote keyless entry and immobiliser
Lane departure warning system: Monocular camera monitor, alerts driver with a warning buzzer and LCD monitor
Advanced Emergency Braking System (AEBS): Milliwave Radar Type (View Assist Technology)
Type Hexapod, white all-steel with roof outline markers Features: Recirculating ball type with full integral hydraulic power assistance, Tilt and telescopic steering column
Features: Manual tilt to 45 deg. Tinted windscreen. Chrome radiator grille. Plastic resin non-slip entry steps. 90 degree opening doors. Zinc galvanised frame structure. Steel-reinforced composite front bumper with fog and daytime running lamps. Two halogen headlamps with indicators. Front mudguards with spray suspension. Aluminium rear under run bar protection. (R58.03) Instruments: Features: Speedometer with odometer and trip. Rev counter.   Multi-information display provides information on servicing, emissions and fuel economy. Fuel gauge.   Coolant temperature gauge.   Air pressure gauge.   Digital tachograph.
Cab Interior: Switches and electrical
Features Flame-resistant interior trim. Vinyl floor matting. Dual long grab handles each side. Interior fluorescent lighting. Driver and passenger SRS airbags. Features Combination stalk incorporating headlamps, indicators, fog lamps, washers and wipers, and exhaust brake. Engine idle control. Headlamp levelling. Engine quick warm up. Cigarette lighter. Reverse warning. DPD. EVSC, ASR and LDWS control. Electronic vehicle variable speed limiter set at 56mph (90kph). Hazard warning lights. DAB radio with Bluetooth® (Sat Nav option available). Steering wheel mounted cruise control and horn.
Storage Space Centre seat back compartment, twin overhead lockers, centre tray, door and dashboard pockets.
Seats (all cloth) Warning/ Indicator Lamps
Features Driver’s fully adjustable Isringhausen® air-suspended seat with head restraint and 3-point seatbelt with pretensioner. Rigid centre seat with 2-point seat belt. Rigid passenger seat with head restraint and 3-point seat belt pretensioner. Upholstery shade upgrade. Features: Battery charge. Oil pressure. Low fuel. Glow plug operation. High beam and indicators. Park brake warning. Fuel/ water separator. Check engine. DPD operation. Engine overhead. AdBlue® level. EVSC, LDWS, ABS. Exhaust brake operation. Front and rear fog lights. Seat belt warning and reminder. Brake fluid level. SRS airbag. Low air warning. Cab tilt lock warning. Airbag pictogram. Diff lock warning.
All chassis cabs come with three-year unlimited mileage warranty and roadside assistance as standard. Terms and conditions apply. Terms and conditions apply.
Isuzu backed Repair and maintenance contracts available upon request
